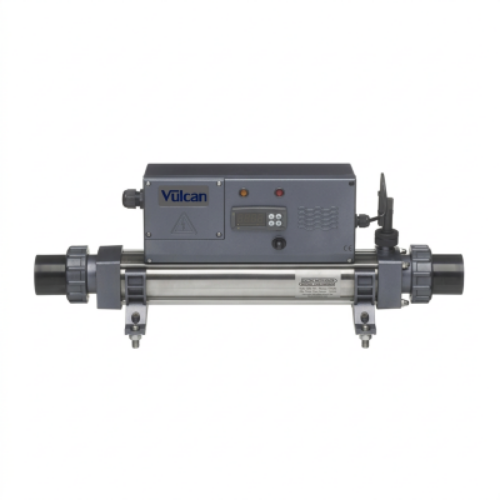

Vulcan Titanium Electric Heaters

Vulcan Titanium Electric Heaters

Vulcan model pool heaters are the market leading electric swimming pool heaters that are perfect for use on all types of pools, from small splasher pools to large inground pools. All Vulcan models are supplied fully equipped and pre-wired including flow switch, control thermostat, overheat safety thermostat and contactor for easy and cost effective installation. All models are available in either Stainless Steel 316 or Titanium for salt pools and include a unique reversible flow switch, which allows water flow from either direction.

Benefits:

• Robust, durable construction
• Fully Equipped
• Easy Installation
• Titanium heating elements
• 316 Stainless Steel flow tube
• May be floor or vertically wall mounted
• Control thermostat 0-40°C (1°C differential)
• Safety thermal cut our 60°C (manual reset)
• Heaters come with 1.5" unions to glue pipe into
• Models with Titanium heating elements are suitable for use on salt water pool
• 1 year warranty - subject to water chemistry

Please note all Elecro Vulvan 800 Heaters are Single Phase.

The flow rate of water into the heater must not exceed 17,000 litres per hour (17m3/hour / 3,740 UK gallons per hour) A higher flow rate will require the installation of a bypass to prevent damage to the heater elements. The heater will not operate unless the following minimum flow rates are achieved ie:
1,000 litres / hour (1m3/hour / 220 UK gallons/hour) for 2 ~ 6-kW heaters
4,000 litres / hour (4m3/hour / 880 UK gallons/hour) for 9 ~ 24-kW heaters

Construction:

The Vulcan pool heater is manufactured from top quality components and material at the Elecro works in Hertfordshire, England.  Construction consists of a flow tube which is fitted with inlet and outlet mouldings manufactured from specially formulated polymer alloy material. The outlet moulding accommodates a reversible flow switch (allowing water input from either direction) with a gold tipped reed switch and Titanium fulcrum pin. The inlet moulding has been designed to ensure full immersion of the elements, greatly reducing the risks of air locking. The heater is supported on two swivel feet; these can be rotated to permit either wall or floor mounting. The heater control components are positioned on the front face of the electrical enclosure.

Operation

The desired pool temperature can be easily selected on the Vulcan heater using the panel-mounted thermostat dial. The single or three-phase power is supplied through a top quality Schneider contactor. Safety and equipment protection is provided by the highly reliable flow switch. Over-temperature protection is provided by the thermal cut out (manual reset).
